90° Elbow
#490504
Body Material
PE100
Standards
ISO 4427, ISO 4437, EN 1555, EN 12201 , AS/NZS 4129
Catalogues
Global Brochures
BIM / CAD
Family Products

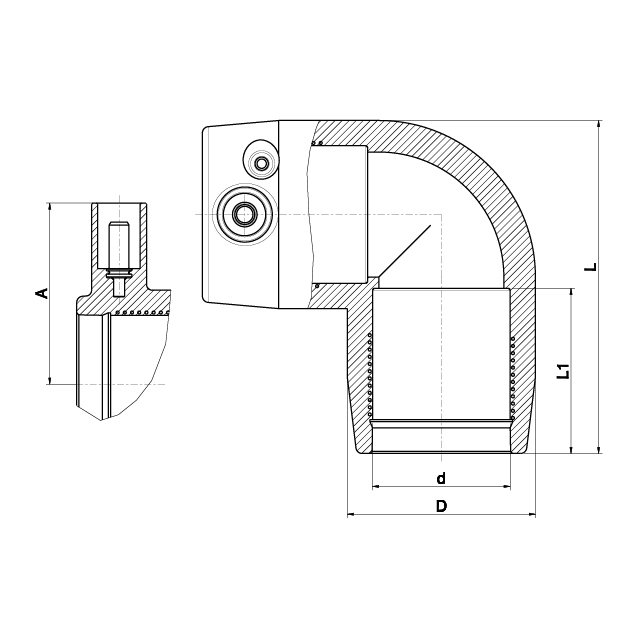

| Product Code |
d
mm
|
A
mm
|
D
mm
|
l1
mm
|
L
mm
|
Gas Pressure Rating
|
Pressure Rating Water
|
Suitable Pipes
|
Weight
g
|
|---|---|---|---|---|---|---|---|---|---|
| PF490504020 | 20 | 38 | 36 | 35 | 66 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 11 | 70 |
| PF490504025 | 25 | 38 | 36 | 37 | 66 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 11 | 50 |
| PF490504032 | 32 | 43 | 44 | 40 | 83 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 11 | 90 |
| PF490504040 | 40 | 47 | 55 | 44 | 92 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 140 |
| PF490504050 | 50 | 52 | 68 | 48 | 108 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 210 |
| PF490504063 | 63 | 59 | 81 | 57 | 131 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 320 |
| PF490504075 | 75 | 62 | 97 | 69 | 158 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 530 |
| PF490504090 | 90 | 69 | 113 | 78 | 213 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 880 |
| PF490504110 | 110 | 79 | 143 | 79 | 243 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1520 |
| PF490504125 | 125 | 89 | 165 | 100 | 271 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 2420 |
| PF490504140 | 140 | 94 | 183 | 93 | 309 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 3020 |
| PF490504160 | 160 | 106 | 209 | 87 | 323 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 3990 |
| PF490504180 | 180 | 115 | 244 | 105 | 412 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 7590 |
| PF490504200 | 200 | 124 | 262 | 112 | 449 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 8670 |
| PF490504225 | 225 | 140 | 295 | 121 | 498 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 21 | 12200 |
| PF490504250 | 250 | 152 | 327 | 130 | 550 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 26 | 13500 |
