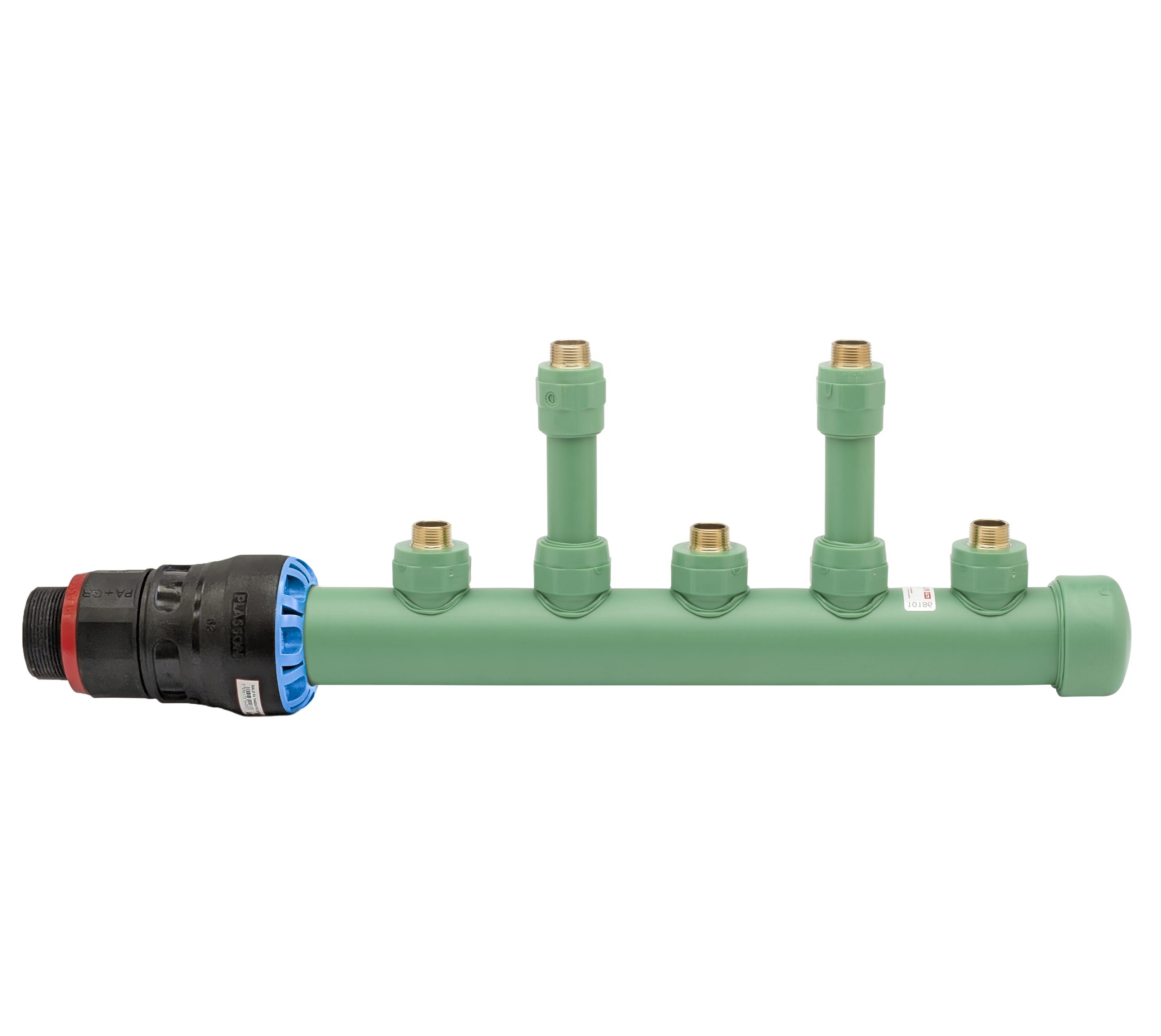

End Supply Manifold 90mm Centres MI End
#3525EAMI
Family Products

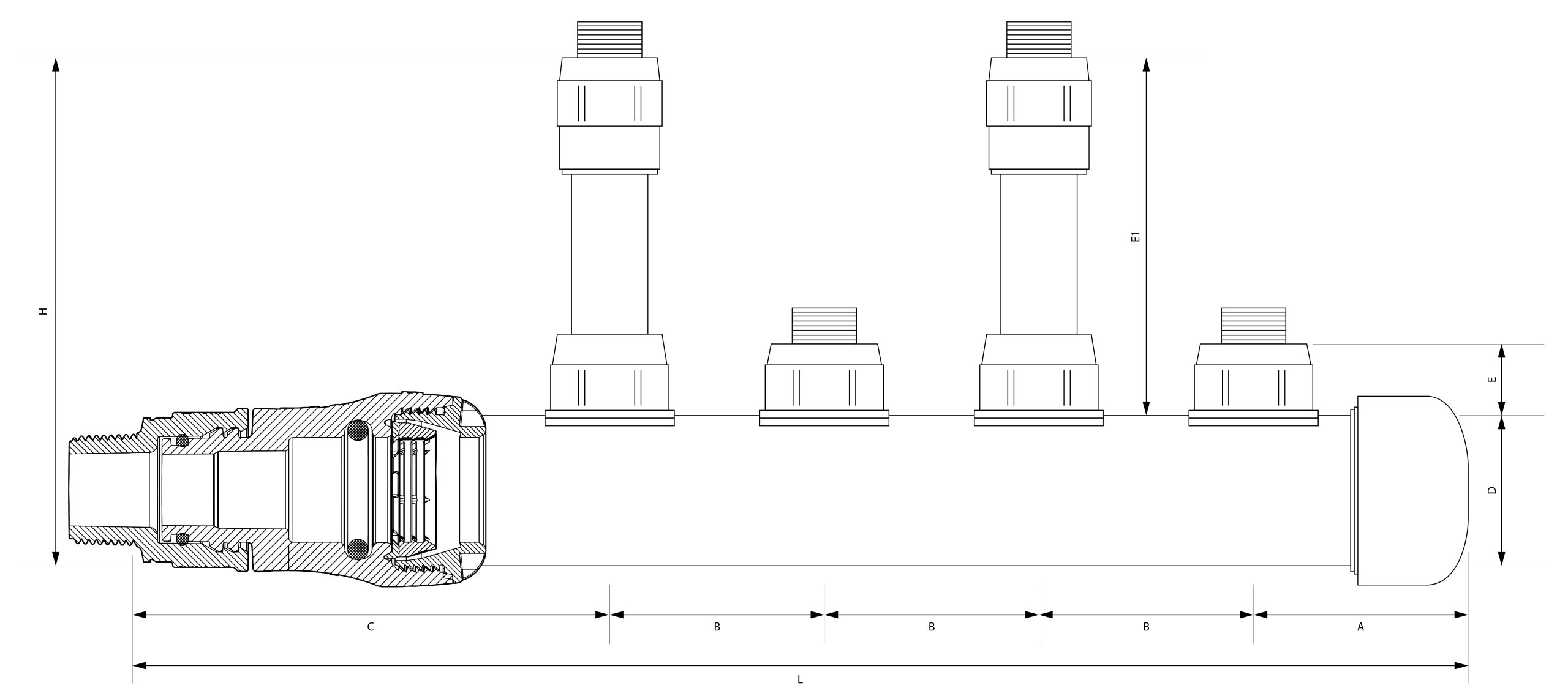

| Product Code |
A
mm
|
A1
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
E1
mm
|
H
mm
|
L
|
Pressure Rating Water
|
Suitable Pipes
|
Number of Ports
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PM3525E3A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 385 | PN16 | SDR 11 to SDR 21 | 3 |
| PM3525E4A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 475 | PN16 | SDR 11 to SDR 21 | 4 |
| PM3525E5A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 565 | PN16 | SDR 11 to SDR 21 | 5 |
| PM3525E6A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 655 | PN16 | SDR 11 to SDR 21 | 6 |
| PM3525E7A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 745 | PN16 | SDR 11 to SDR 21 | 7 |
| PM3525E8A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 835 | PN16 | SDR 11 to SDR 21 | 8 |
| PM3525E9A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 925 | PN16 | SDR 11 to SDR 21 | 9 |
| PM3525E10A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 1015 | PN16 | SDR 11 to SDR 21 | 10 |
| PM3525E11A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 1105 | PN16 | SDR 11 to SDR 21 | 11 |
| PM3525E12A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 1195 | PN16 | SDR 11 to SDR 21 | 12 |
| PM3525E13A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 1285 | PN16 | SDR 11 to SDR 21 | 13 |
| PM3525E14A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 1375 | PN16 | SDR 11 to SDR 21 | 14 |
| PM3525E15A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 1465 | PN16 | SDR 11 to SDR 21 | 15 |
| PM3525E16A03 | 90 | - | 90 | 115 | 63 | 30 | 30 | 213 | 1555 | PN16 | SDR 11 to SDR 21 | 16 |
| PM3525DOC | 120 | 200 | - | - | - | - | - | 85 | - | PN16 | SDR 11 to SDR 21 | - |
