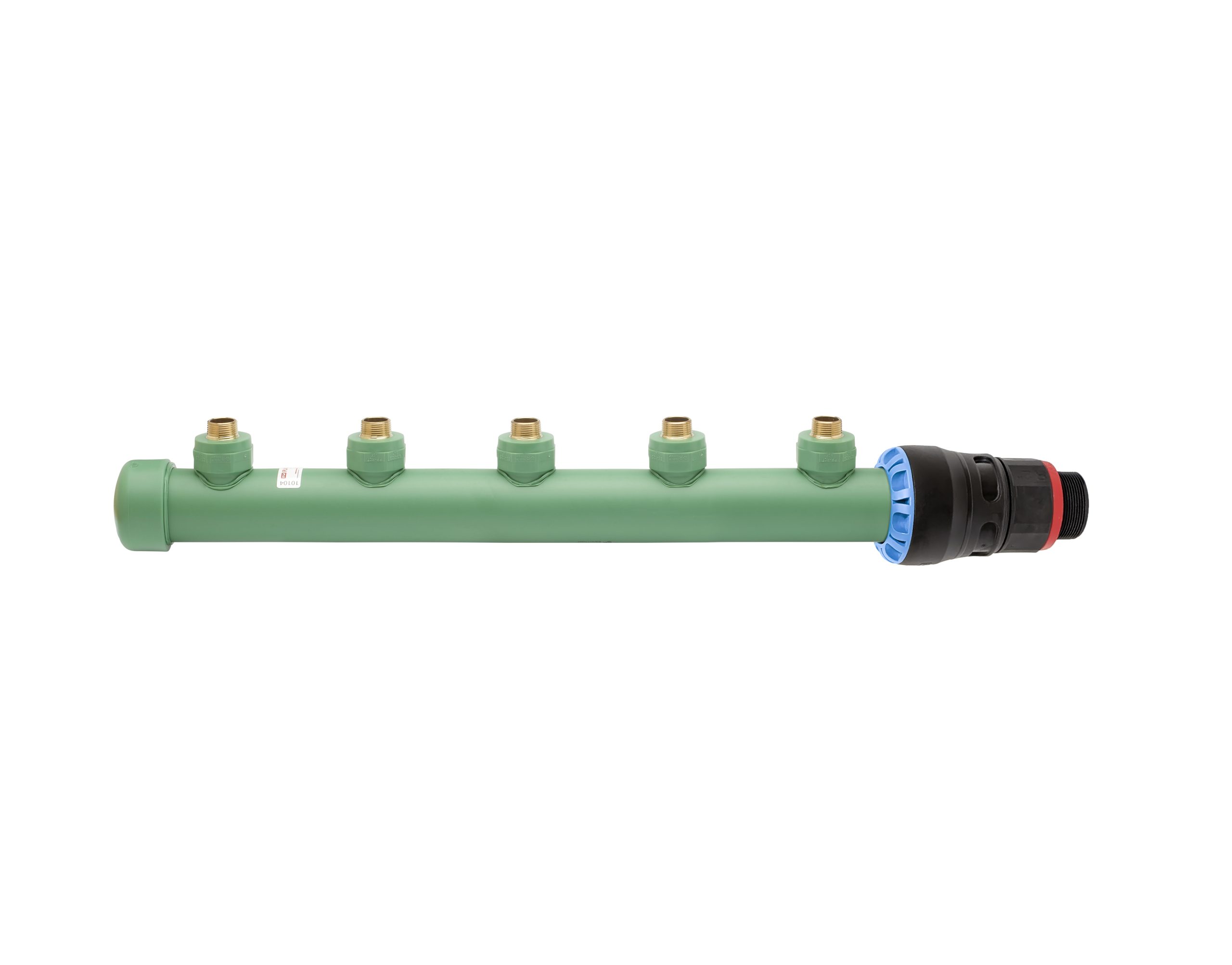

End Supply Manifold 130mm Centres MI End
#3525EBMI
Family Products

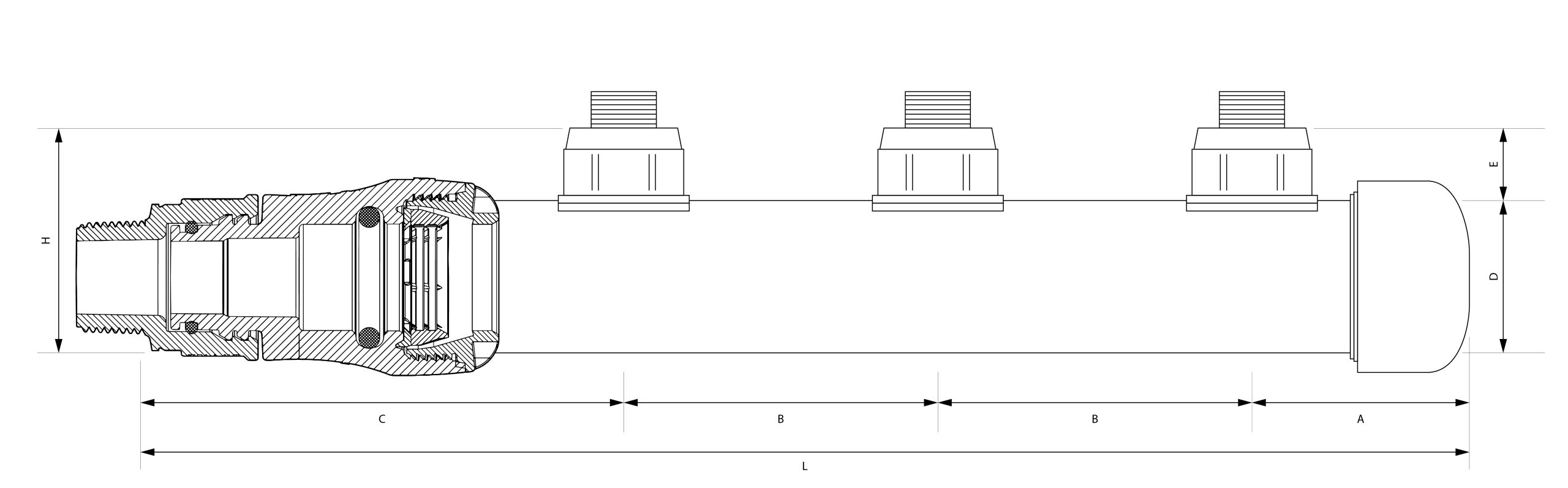

| Product Code |
A
mm
|
A1
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
E1
|
H
mm
|
L
|
Pressure Rating Water
|
Suitable Pipes
|
Number of Ports
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PM3525E3B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 465 | PN16 | SDR 11 to SDR 21 | 3 |
| PM3525E4B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 595 | PN16 | SDR 11 to SDR 21 | 4 |
| PM3525E5B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 725 | PN16 | SDR 11 to SDR 21 | 5 |
| PM3525E6B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 855 | PN16 | SDR 11 to SDR 21 | 6 |
| PM3525E7B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 985 | PN16 | SDR 11 to SDR 21 | 7 |
| PM3525E8B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 1115 | PN16 | SDR 11 to SDR 21 | 8 |
| PM3525E9B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 1245 | PN16 | SDR 11 to SDR 21 | 9 |
| PM3525E10B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 1375 | PN16 | SDR 11 to SDR 21 | 10 |
| PM3525E11B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 1505 | PN16 | SDR 11 to SDR 21 | 11 |
| PM3525E12B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 1635 | PN16 | SDR 11 to SDR 21 | 12 |
| PM3525E13B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 1765 | PN16 | SDR 11 to SDR 21 | 13 |
| PM3525E14B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 1895 | PN16 | SDR 11 to SDR 21 | 14 |
| PM3525E15B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 2025 | PN16 | SDR 11 to SDR 21 | 15 |
| PM3525E16B03 | 90 | - | 130 | 115 | 63 | 30 | 30 | 93 | 2155 | PN16 | SDR 11 to SDR 21 | 16 |
| PM3525DOC | 120 | 200 | - | - | - | - | - | 85 | - | PN16 | SDR 11 to SDR 21 | - |
