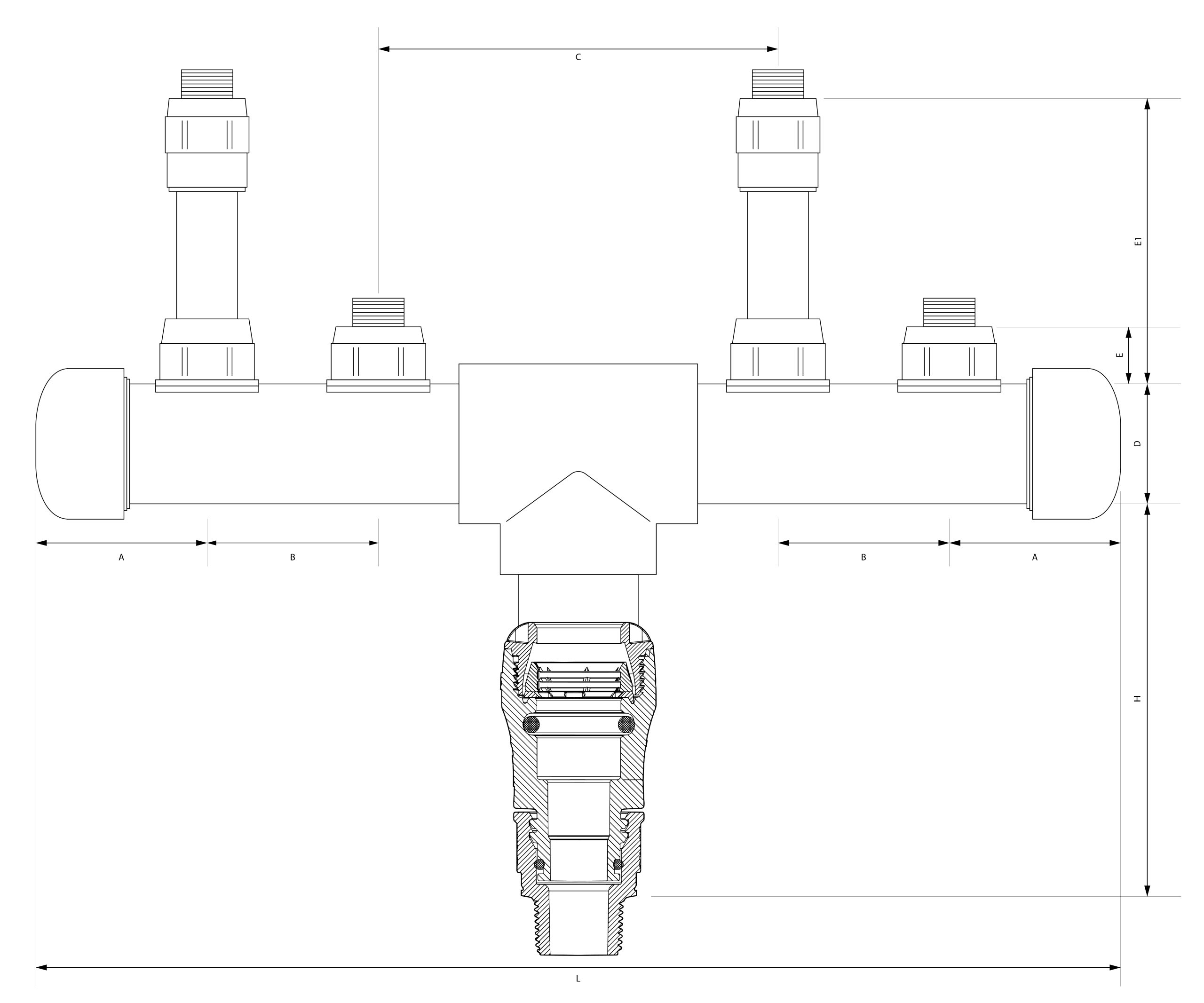

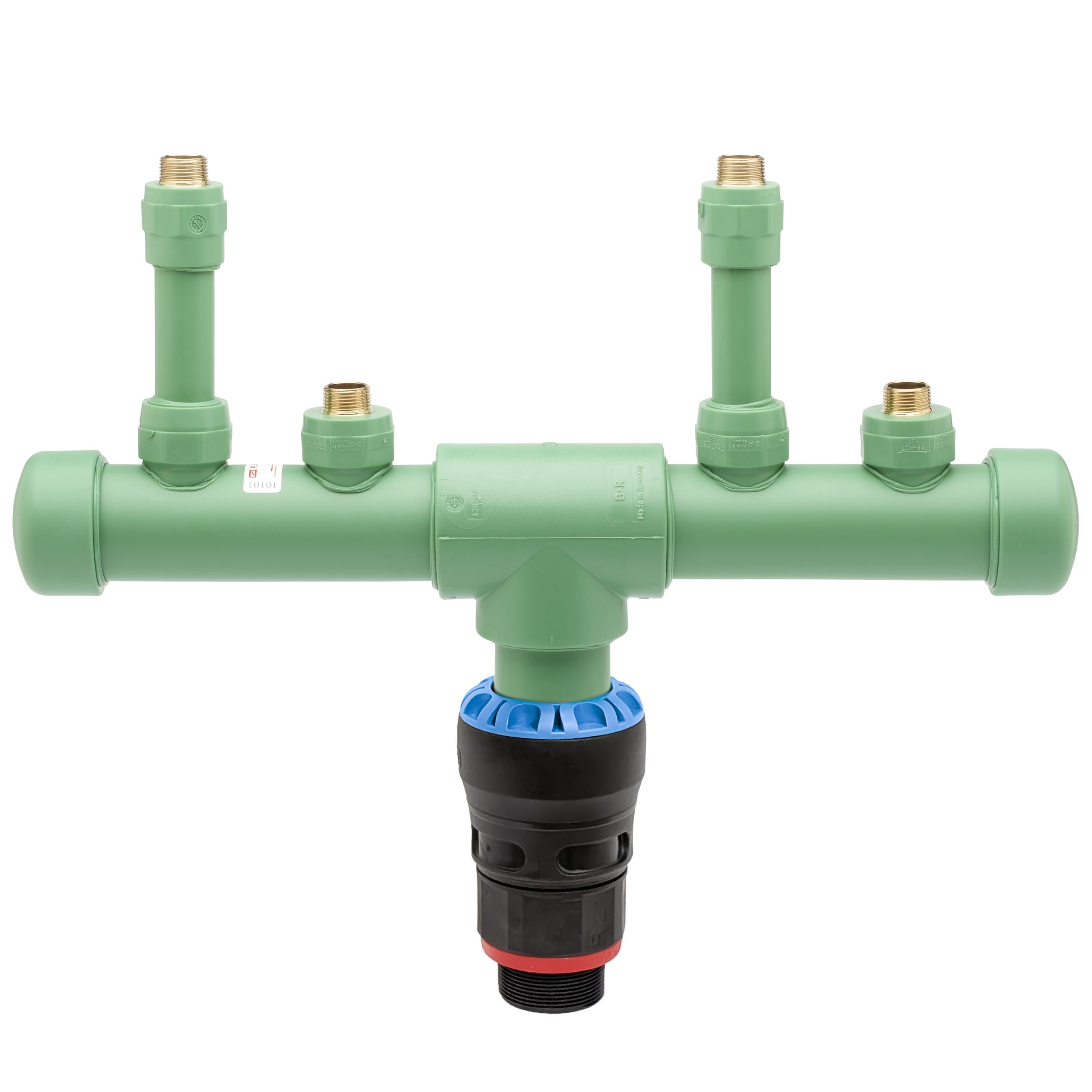

Centre Supply Manifold 90mm Centres MI End
#3525CAMI
Family Products
| Product Code |
A
mm
|
A1
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
E1
mm
|
H
mm
|
L
|
Pressure Rating Water
|
Suitable Pipes
|
Number of Ports
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PM3525C4A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 570 | PN16 | SDR 11 to SDR 21 | 4 |
| PM3525C5A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 660 | PN16 | SDR 11 to SDR 21 | 5 |
| PM3525C6A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 750 | PN16 | SDR 11 to SDR 21 | 6 |
| PM3525C7A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 840 | PN16 | SDR 11 to SDR 21 | 7 |
| PM3525C8A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 930 | PN16 | SDR 11 to SDR 21 | 8 |
| PM3525C9A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 1020 | PN16 | SDR 11 to SDR 21 | 9 |
| PM3525C10A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 1110 | PN16 | SDR 11 to SDR 21 | 10 |
| PM3525C11A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 1200 | PN16 | SDR 11 to SDR 21 | 11 |
| PM3525C12A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 1290 | PN16 | SDR 11 to SDR 21 | 12 |
| PM3525C13A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 1380 | PN16 | SDR 11 to SDR 21 | 13 |
| PM3525C14A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 1470 | PN16 | SDR 11 to SDR 21 | 14 |
| PM3525C15A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 1560 | PN16 | SDR 11 to SDR 21 | 15 |
| PM3525C16A03 | 90 | - | 90 | 210 | 63 | 30 | 30 | 205 | 1650 | PN16 | SDR 11 to SDR 21 | 16 |
| PM3525DOC | 120 | 200 | - | - | - | - | - | 85 | - | PN16 | SDR 11 to SDR 21 | - |
