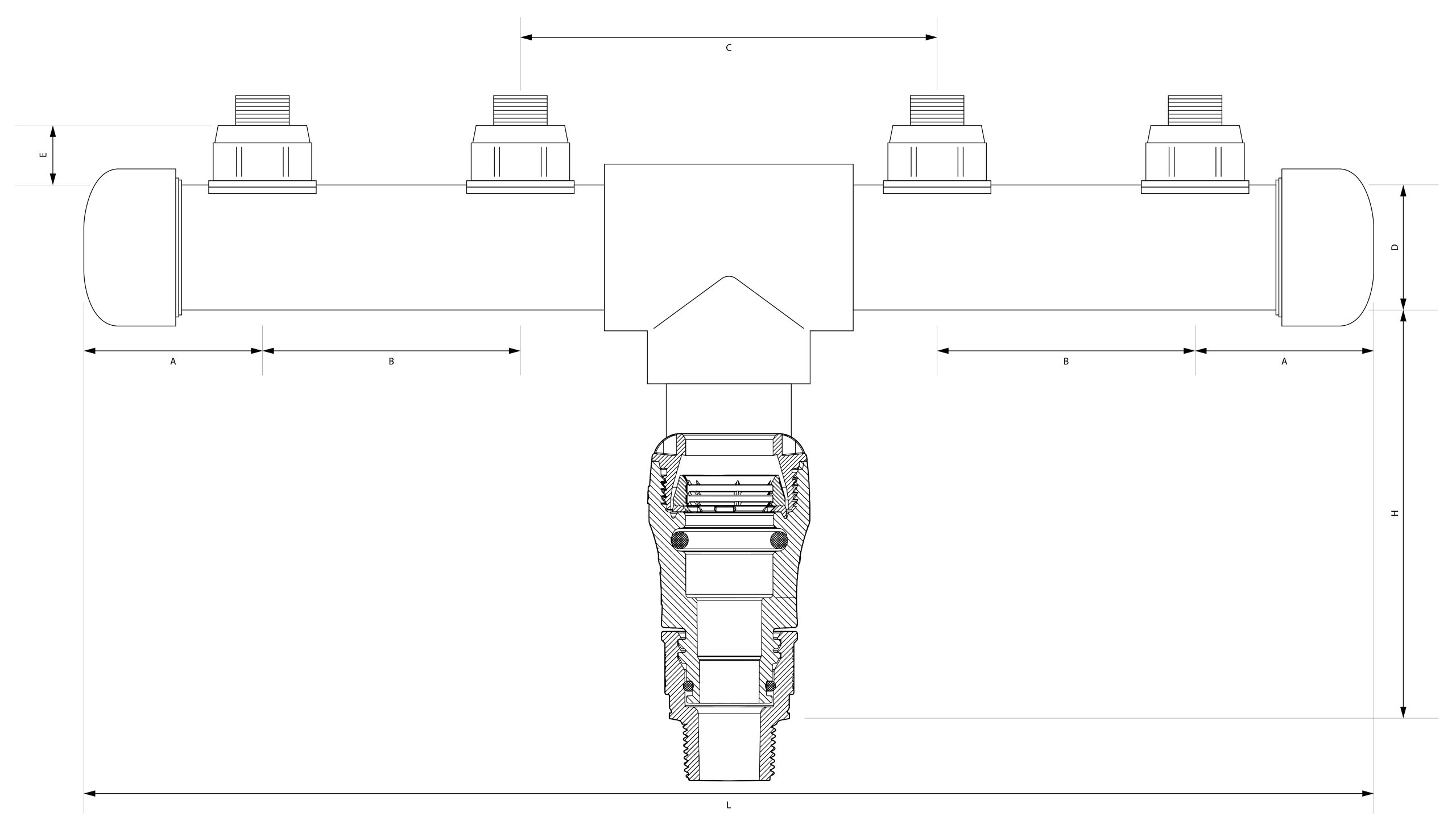

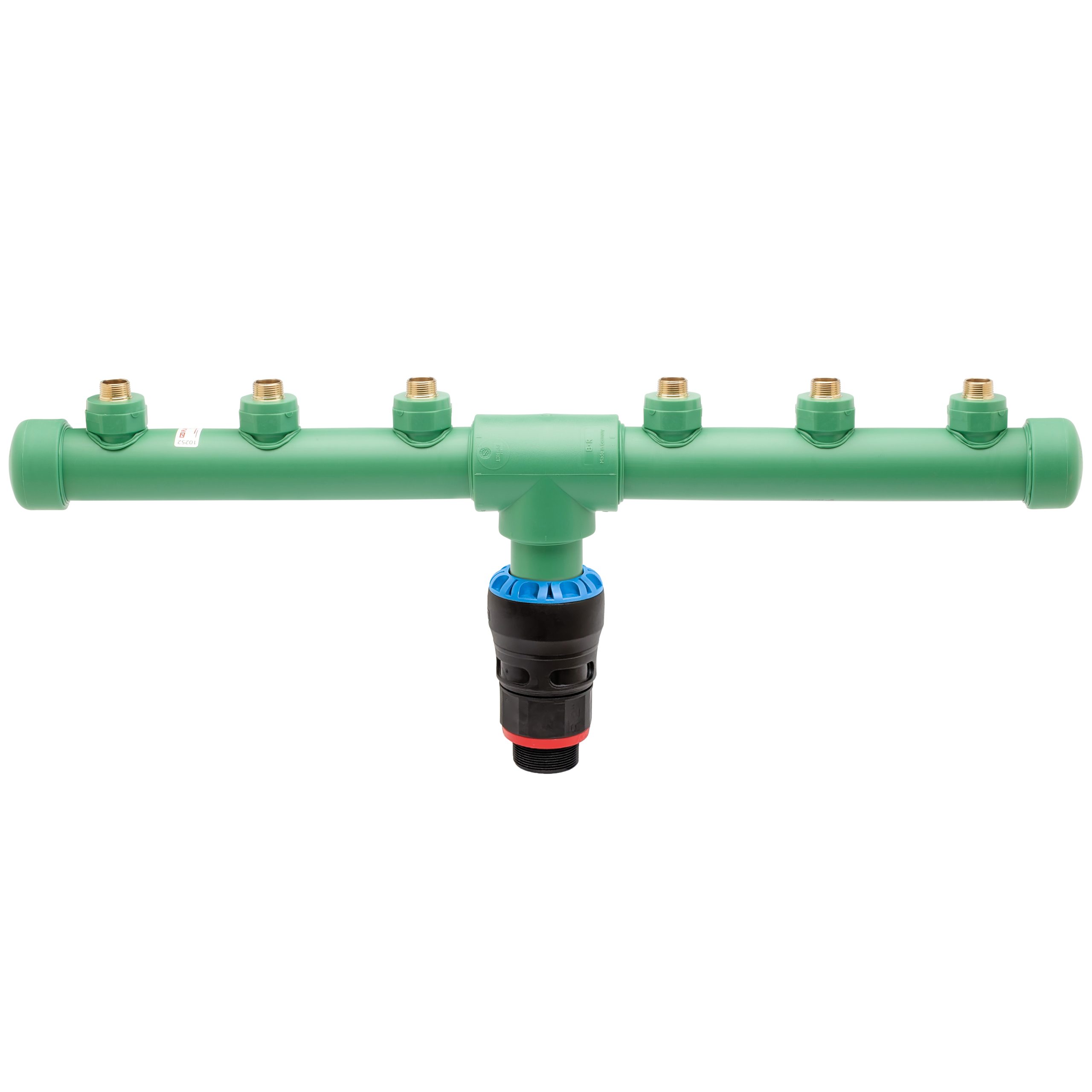

Centre Supply Manifold 130mm Centres MI End
#3525CBMI
Family Products
| Product Code |
A
mm
|
A1
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
E1
|
H
mm
|
L
|
Pressure Rating Water
|
Suitable Pipes
|
Number of Ports
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PM3525C2B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 390 | PN16 | SDR 11 to SDR 21 | 2 |
| PM3525C4B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 650 | PN16 | SDR 11 to SDR 21 | 4 |
| PM3525C5B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 780 | PN16 | SDR 11 to SDR 21 | 5 |
| PM3525C6B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 910 | PN16 | SDR 11 to SDR 21 | 6 |
| PM3525C7B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 1040 | PN16 | SDR 11 to SDR 21 | 7 |
| PM3525C8B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 1170 | PN16 | SDR 11 to SDR 21 | 8 |
| PM3525C9B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 1300 | PN16 | SDR 11 to SDR 21 | 9 |
| PM3525C10B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 1430 | PN16 | SDR 11 to SDR 21 | 10 |
| PM3525C11B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 1560 | PN16 | SDR 11 to SDR 21 | 11 |
| PM3525C12B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 1690 | PN16 | SDR 11 to SDR 21 | 12 |
| PM3525C13B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 1820 | PN16 | SDR 11 to SDR 21 | 13 |
| PM3525C14B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 1950 | PN16 | SDR 11 to SDR 21 | 14 |
| PM3525C15B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 2080 | PN16 | SDR 11 to SDR 21 | 15 |
| PM3525C16B03 | 90 | - | 130 | 210 | 63 | 30 | 30 | 205 | 2210 | PN16 | SDR 11 to SDR 21 | 16 |

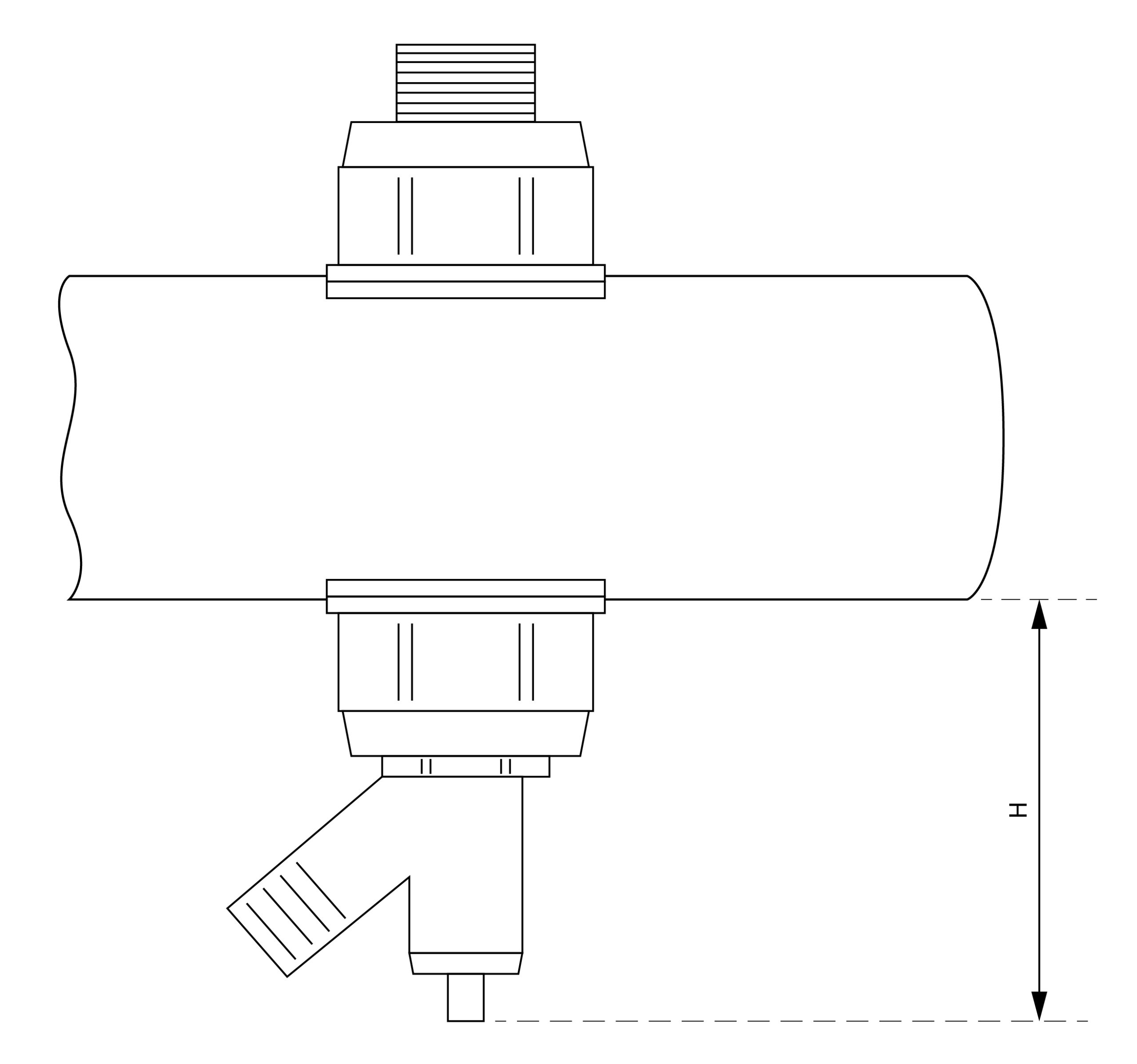

| PM3525DOC | 120 | 200 | - | - | - | - | - | 85 | - | PN16 | SDR 11 to SDR 21 | - |
