Transition Saddle
#493804
Body Material
PE100
Thread Material
Brass
Standards
ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129
Catalogues
Global Brochures

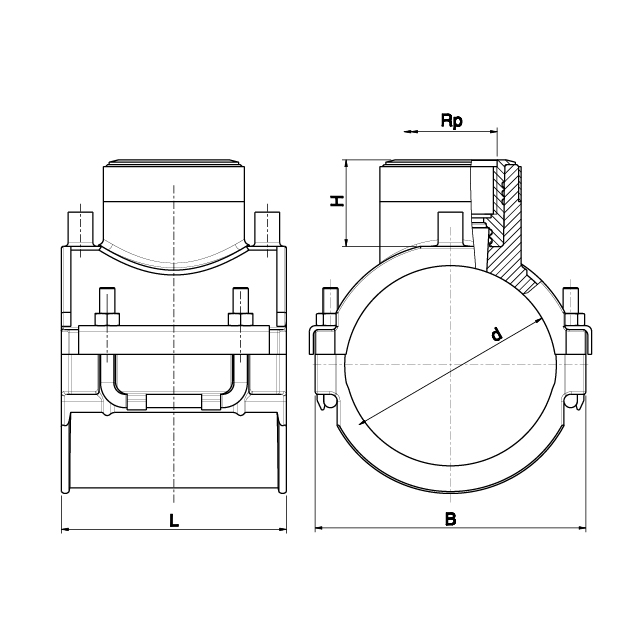

Family Products
| Product Code |
d
mm
|
G
inch
|
B
mm
|
H
mm
|
L
mm
|
Gas Pressure Rating
|
Pressure Rating Water
|
Suitable Pipes
|
Weight
g
|
|---|---|---|---|---|---|---|---|---|---|
| PF493804063013 | 63 | 1 1/4" | 100 | 53 | 118 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 11 | 610 |
| 493804075013 | 75 | 1 1/4" | 117 | 53 | 118 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 11 | 660 |
| PF493804090015 | 90 | 1 1/2" | 121 | 53 | 118 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 930 |
| PF493804090020 | 90 | 2" | 142 | 76 | 176 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1440 |
| PF493804110015 | 110 | 1 1/2" | 142 | 53 | 118 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1010 |
| PF493804110020 | 110 | 2" | 158 | 76 | 176 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1500 |
| PF493804125015 | 125 | 1 1/2" | 158 | 53 | 118 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1050 |
| PF493804125020 | 125 | 2" | 166 | 76 | 176 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1510 |
| 493804140015 | 140 | 1 1/2" | 175 | 53 | 118 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1070 |
| 493804140020 | 140 | 2" | 174 | 76 | 176 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1520 |
| 493804160015 | 160 | 1 1/2" | 196 | 53 | 118 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1160 |
| PF493804160020 | 160 | 2" | 176 | 76 | 176 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1540 |
| PF493804180020 | 180 | 2" | 182 | 76 | 176 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1500 |
| 493804180015 | 180 | 1 1/2" | 216 | 53 | 118 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1200 |
| PF493804200020 | 200 | 2" | 202 | 76 | 176 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1580 |
| PF493804225020 | 225 | 2" | 227 | 76 | 176 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1570 |
| PF493804250020 | 250 | 2" | 252 | 76 | 176 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1040 |
| 493804400020 | 280-400 | 2" | 305 | 77 | 306 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 17 | 1980 |
| 493804710020 | 450-800 | 2" | 315 | 77 | 306 | PE100 SDR 11 | PN 16 | SDR 7 to SDR 26 | 1960 |
